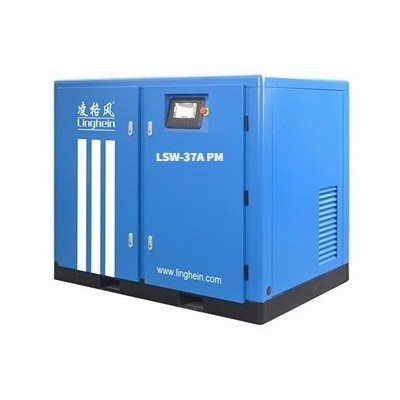

凌格风LSW37APM无油水润滑螺杆空气压缩机技术参数
| 名称 | 单位 | 型号参数 |
| LSW37A PM | ||
| Volume flow容积流量 | m3/min | 2.6-6.4 |
| Work pressure工作压力 | MPaG | 0.5-0.8 |
| Motor power电机功率 | KW | 37 |
| Motor protection grade电机防护等级 | IP54 | |
| Insulation class绝缘等级 | F级 | |
| Power 电源 | V/PH/HZ | 380/3/50 |
| Start way启动方式 | 变频 | |
| Transmission way传动方式 | 直联 | |
| Exhaust temperature排气温度 | ℃ | 环境温度+20℃ |
| noise噪音 | dB(A) | 一米内66±2 |
| Cooling way冷却方式 | 风冷 | |
| Over caliber接管口径 | 1 1/4” | |
| dimension外形尺寸（长×宽×高） | mm | 1650×1180×1505 |
| weight设备重量 | kg | 1200 |
凌格风无油水润滑永磁变频空压机7.5-250kW 技术参数
| 型 号 | 功率 kW | 容积流量 m3 /min | 噪音 dB | 冷却水口外径 | 冷却水量进水32℃ m3 /h | 润滑 水量L | 外形尺寸 L x W x H mm | 重量 kg | 空气出口 | |
| 0.5~0.8MPa | 1.0MPa | |||||||||
| LSW-8A PM | 7.5 | 0.5~1.1 | 0.4~0.9 | 57 | 10 | 800 x 800 x 1200 | 510 | 3/4" | ||
| LSW-11A PM | 11 | 0.7~1.7 | 0.6~1.4 | 60 | 26 | 1200 x 855 x 1335 | 620 | 3/4" | ||
| LSW-15A PM | 15 | 1.0~2.3 | 0.9~2.0 | 60 | 26 | 1200 x 855 x 1335 | 670 | 3/4" | ||
| LSW-18A PM | 18.5 | 1.2~3.0 | 1.0~2.6 | 63 | 30 | 1400x1010 x 1340 | 730 | 1" | ||
| LSW-22A PM | 22 | 1.5~3.6 | 1.3~3.0 | 63 | 30 | 1400x1010 x 1340 | 780 | 1" | ||
| LSW-30A PM | 30 | 2.1~5.1 | 1.8~4.3 | 66 | 40 | 1650x 1180 x 1505 | 1150 | 1 1/4" | ||
| LSW-37A PM | 37 | 2.6~6.4 | 2.2~5.4 | 66 | 40 | 1650x 1180 x 1505 | 1200 | 1 1/4" | ||
| LSW-45W PM | 45 | 3.3~8.2 | 2.8~7.0 | 68 | 1 1/2" | 10 | 90 | 1800x 1360 x 1670 | 1490 | 2" |
| LSW-55W PM | 55 | 4.0~10.0 | 3.4~8.5 | 69 | 1 1/2" | 12 | 100 | 1800 x 1360 x 1670 | 1570 | 2" |
| LSW-75W PM | 75 | 5.2~13.0 | 4.4~11.1 | 72 | 1 1/2" | 18 | 100 | 1800 x 1360 x 1670 | 1750 | 2" |
| LSW-90W PM | 90 | 6.9~17.2 | 5.9~14.6 | 73 | 1 1/2" | 20 | 120 | 2200 x 1550 x 1800 | 2450 | 2 1/2" |
| LSW-110W PM | 110 | 8.2~20.3 | 7.0~17.3 | 75 | 2" | 24 | 120 | 2200 x 1550 x 1800 | 2580 | 2 1/2" |
| LSW-132W PM | 132 | 9.7~24.1 | 8.2~20.5 | 75 | 2" | 30 | 160 | 2200 x 1550 x 1800 | 2700 | 2 1/2" |
| LSW-160W PM | 160 | 11.3~28.2 | 9.6~24.0 | 77 | 3" | 35 | 160 | 2700 x 1830 x 1850 | 3900 | DN80 |
| LSW-185W PM | 185 | 12.9~32.1 | 11.0~27.3 | 77 | 3" | 38 | 160 | 2700 x 1830 x 1850 | 4050 | DN80 |
| LSW-200W PM | 200 | 13.8~34.5 | 11.7~29.3 | 78 | 4" | 42 | 200 | 2700 x 1830 x 1850 | 4200 | DN80 |
| LSW-220W PM | 220 | 15.5~38.6 | 13.2~32.8 | 79 | 4" | 47 | 200 | 2700 x 1830 x 1850 | 4400 | DN80 |
| LSW-250W PM | 250 | 17.1~42.6 | 14.5~36.2 | 79 | 4" | 53 | 200 | 2700 x 1830 x 1850 | 4800 | DN80 |
